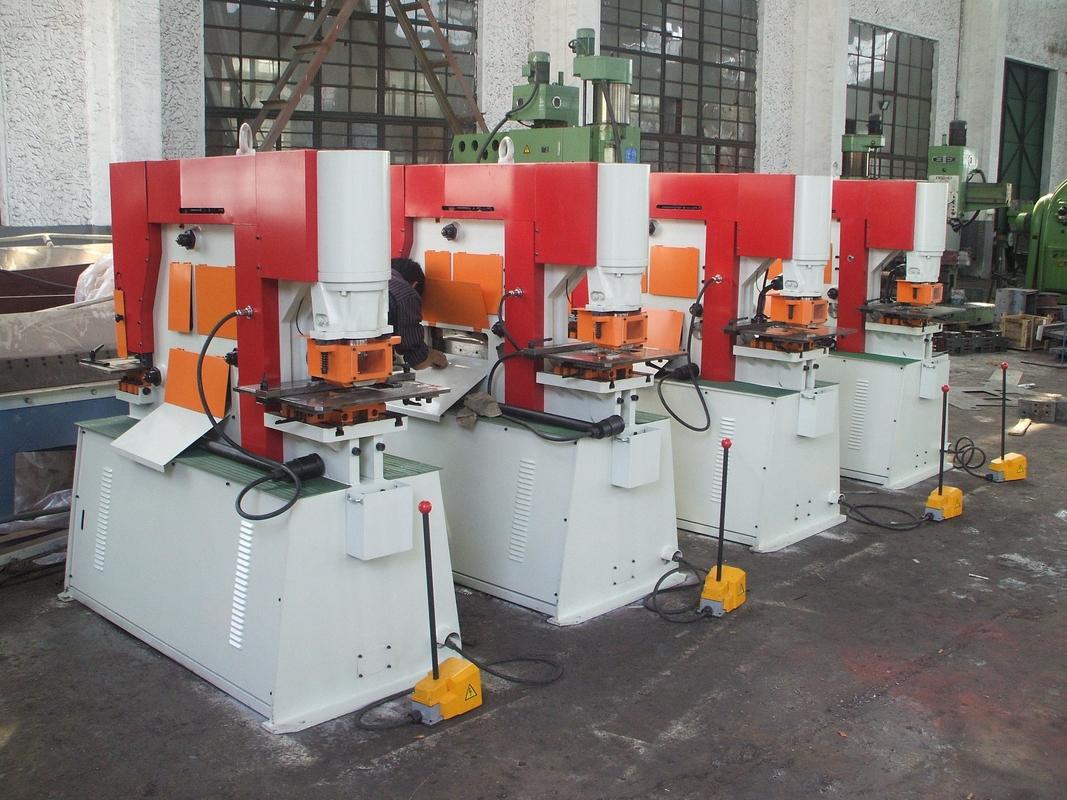

Hydraulic Iron Worker Q35y-20 Angle Steel Round Square Oval Hole Punching

Hydraulic Ironworker, Shearing Press Punch Machine, For Angle Steel And Round Square Oval Hole Punching

The industrial grade hydraulic cast iron work series has a wide range of functions including: punching of round, square and long round holes; punching of steel plates, flat bars, angles, c-channels and h-beams; bending of steel plates; shearing, slotting and bending of angles; shearing/cutting of flat, round and square bars, c-channels, I-beams and t-beams; bending of angles and pipe slots.
Standard equipment:quick change nut and sleeve, square arm with scale, electronic back gauge, measuring table with stop, punching seat, safety device, etc. The versatile series hydraulic exercise machine is the first choice for your supporting machinery. In addition, all components are of the highest quality in terms of safety, functionality, performance and maintenance.
Our machines are designed with the most advanced technology and offer the advantages of easy operation, low consumption and low maintenance costs. We can also offer customised solutions to better meet the needs of our customers.

Products Description

MODEL	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
PUNCHING
Punching Pressure	55Ton	75 Ton	110 Ton	140 Ton
Punching Capacity	¢22 x 20	¢26 x 22	¢31 x 27	¢36 x 32
( Diameter x Thickness)	¢50 x 9	¢50 x 12	¢50 x 17	¢50 x 23
Throat Depth	300	355	400	600
					:
Channel Flange Punching (Height)	180	180	180	180
Max. Stroke Length	100	100	100	100
Cycles/Min. (20mm stroke)	30	30	28	40
Working Height Up to Die	950	1050	1050	1120
FLAT SHEARING
Flat Bar Shear	350 x 15	460 x 15	610 x 18	600 x 20
(Width x Thickness)	240 x 20	300 x 20	400 x 25	400 x 30
Blade Length	410	485	620	610
Angle Flange Trim	70	75	90	100
Working Height	910	926	920	920
ANGLE SHEARING
At 90º Shearing	130 x 130 x 13	152 x 152 x 13	152 x 152 x 18	205 x 205 x 18
At 45º Miter Shearing	60 x 60x 6	60 x60 x 6	70 x 70 x 7	70 x 70 x 7
Working Height	1115	1165	1185	1185
BAR SHEARING
Round Bar Shear	¢45	¢50	¢60	¢65
Square Bar Shear	40 x 40	50 x 50	50 x 50	55 x 55
Channel Shear	130*	152*	180*	203*
I Beam Shear	130*	152*	180*	203*
Working Height	1220	1270	1310	1370
NOTCHING
Rectangular Notcher (W x D x T)	50.8 x 90 x 9	50.8 x 90 x 12	63.5 x 90 x 13	63.5 x 90 x 16
Vee-Notcher (Side x Side x T)	90 x 90 x 10*	90 x 90 x 12*	105 x 105 x 13*	105 x 105 x 16*
Large V-Notcher (Side x Side x T)	145 x 145 x 8*	145 x 145 x 10*	145 x 145 x 13*	145 x 145 x 13*
Working Height	910	926	920	920
SPECIAL TOOLING
Single Vee Press Brake (W x T)	250 x 15*	250 x 15*	250 x 20*	250 x 20*
Multi- Vee Press Brake (W x T)	500 x 5*	500 x 5*	700 x 5*	700 x 5*
Angle Bending	102 x 6*	102 x 8*	102 x 13*	102 x 13*
Pipe Notching	¢114*	¢114*	¢114*	¢114*
OTHER
Motor	4 Kw	5.5 Kw	7.5 Kw	11 Kw
Net eight(Apr.)	1600 kg	1800kh	3800kg	4800kg
					:
Gross Weight (Apr.)	1800kg	2000kg	4000kg	5000kg
Machine Dimensions (Apr.)	1710x800x1770	1860x800x1900	2360x960x2090	2720x1040x2300
(L x W x H)

Specifications

Name	Hydraulic Single Punching Machine
Max. Cutting Thickness (mm)	16 mm
Automatic Level	Manual
Shearing Angle	90
Blade Length (mm)	25 mm
Backgauge Travel (mm)	10 - 80 mm
Throat Depth (mm)	300 mm
Condition	New
Brand Name	DC40Y
Power (kW)	4 kW
Weight (KG)	1400 KG
Place of Origin	China
Voltage	380-400v
Dimension(L*W*H)	1650*750*1800mm
Certification	ce
Warranty	1 Year
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Core Components	Motor, Pump
