Product Details:
|
| Slider Stroke (mm): | 200 Mm | Automatic Level: | Fully Automatic |
|---|---|---|---|
| Throat Depth (mm): | 320 Mm | Machine Type: | Torsion Bar |
| Length Of Working Table (mm): | 3200 | Width Of Working Table (mm): | 550 Mm |
| Dimension: | 3750*1550 *2510mm | Condition: | New |
| Material / Metal Processed: | Stainless Steel, Carbon Steel, Aluminum | Automation: | Automatic |
| Extra Services: | End Forming | Year: | 2021 |
| Weight (KG): | 8000 | Motor Power (kw): | 7.5 Kw |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant, Construction Works , Other | Showroom Location: | France, Germany, Peru, Spain, None |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other | Distance Between Columns: | 2700mm |
| Stroke Of Ram: | 200mm | Adjustment Range Of Ram Stroke: | 60mm |
| Speed Of Ram No Working: | 120mm/s | Pump Motor Type: | NB2-G16F-Y132M-4 |
| Ram Motor Type: | A02-7124 B3 | Back Gauge Motor Type: | YU80M-6 B3 |
| Speed Of Ram Working: | 7.5mm/s | Speed Of Ram Back: | 55mm/s |
| Pump Motor Power: | 7.5Kw | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | France, Germany, Peru, Spain |
| Port: | Shanghai | ||
| High Light: | 600mm press brake,1250mm press brake,press brake machine 40 ton |
||

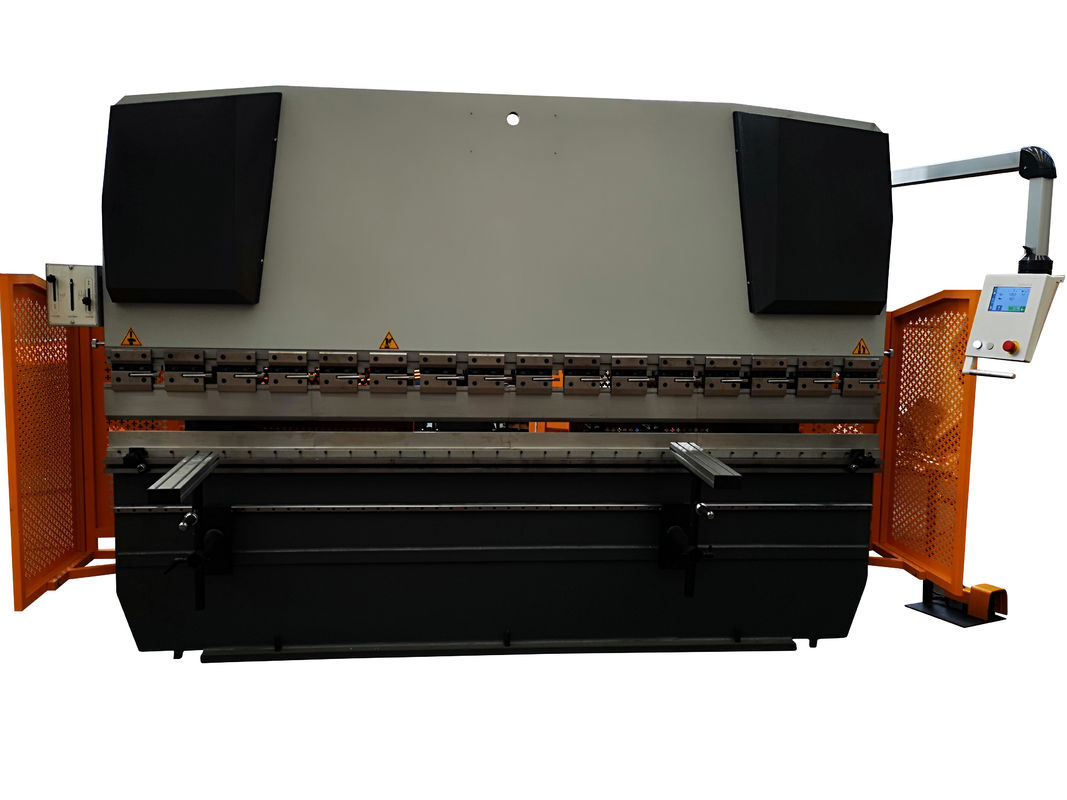

High Quality Long Service Life 3750*1550 *2510mm Hydraulic Bender Machine Cnc Press Brake
CYBTOUCH 8P CNC PRESS BRAKE,
quick clamping system
lineal guideway on table
backgauge with ballscrew
quick clamping system
proporational valve
Newly mechanical designed, Adopted fully welded frame,vibration eliminated stress,high rigidity ,hydraulic driving system,sturdy and durable,backgauge stroke and position is showed and controlled by E21 NC or cybtouch 8P, left and right fence guard with limit swith ,fully closed rear fence guard with limit switch to protect the operator and other people, electric cabinet door open,machine stop,oil tank cover with rubber seals,and electric cabinet door with rubber seals ,portable foot pedal and front support arms as standard accessories with machine ,quick clamping system facilitate changing tools
Rexroth valve or top quality valve
Schneider electric components
Portable foot pedal with emergency stop
CE NORM
Attractive price and good after sales service
24 months warranty
Fiessler akas laser protection guard are optional
Lineal guideway is optional
| model | bending length | distance between frames | tonnage | throat depth | beam stroke | day light | beam approach speed(fast) | beam working speed(slow) | beam retuern speed |
| WC67Y-40T/2000 | 2000 | 1620 | 40 | 200 | 100 | 320 | 50 | 8 | 40 |
| WC67Y-40T/2500 | 2500 | 2080 | 40 | 200 | 100 | 320 | 50 | 8 | 40 |
| WC67Y-63T/2200 | 2200 | 1550 | 63 | 250 | 100 | 320 | 50 | ||
| WC67Y-63T/2500 | 2500 | 2080 | 63 | 250 | 100 | 320 | 50 | 7.5 | 50 |
| WC67Y-63T/3200 | 3200 | 2700 | 63 | 250 | 100 | 320 | 50 | 7.5 | 50 |
| WC67Y-80T/2500 | 2500 | 2080 | 80 | 250 | 100 | 350 | 50 | 7.5 | 50 |
| WC67Y-80T/3200 | 3200 | 2700 | 80 | 250 | 100 | 350 | 50 | 7.5 | 50 |
| WC67Y-100T/2500 | 2500 | 2050 | 100 | 320 | 140 | 406 | 60 | 7.5 | 55 |
| WC67Y-100T/3200 | 3200 | 2700 | 100 | 320 | 140 | 406 | 60 | 7.5 | 55 |
| WC67Y-100T/4000 | 4000 | 3150 | 100 | 320 | 140 | 406 | 60 | 7.5 | 55 |
| WC67Y-125T/3200 | 3200 | 2700 | 125 | 320 | 140 | 406 | 60 | 7.5 | 55 |
| WC67Y-125T/3600 | 3600 | 3000 | 125 | 320 | 140 | 406 | 60 | 7.5 | 55 |
| WC67Y-125T/4000 | 4000 | 3150 | 125 | 320 | 140 | 406 | 60 | 7.5 | 55 |
| WC67Y-140T/3200 | 3200 | 2700 | 140 | 320 | 150 | 415 | 60 | 7 | 55 |
| WC67Y-140T/4000 | 4000 | 3150 | 140 | 320 | 150 | 415 | 60 | 7 | 55 |
| WC67Y-160T/3200 | 3200 | 2600 | 160 | 320 | 150 | 420 | 60 | 8 | 55 |
| WC67Y-160T/4000 | 4000 | 3150 | 160 | 320 | 150 | 420 | 60 | 8 | 55 |
| WC67Y-200T/3200 | 3200 | 2600 | 200 | 320 | 180 | 445 | 60 | 8 | 55 |
| WC67Y-200T/4000 | 4000 | 3150 | 200 | 320 | 180 | 445 | 60 | 8 | 55 |
| WC67Y-250T/3200 | 3200 | 2600 | 250 | 400 | 200 | 480 | 50 | 6 | 50 |
| WC67Y-250T/4000 | 4000 | 3150 | 250 | 400 | 200 | 570 | 50 | 6 | 50 |
| WC67Y-300T/3200 | 3200 | 2500 | 300 | 400 | 250 | 630 | 40 | 8 | 50 |
| WC67Y-300T/4000 | 4000 | 3070 | 300 | 400 | 250 | 630 | 40 | 8 | 50 |
| WC67Y-300T/5000 | 5000 | 4000 | 300 | 400 | 250 | 630 | 40 | 8 | 50 |
| WC67Y-300T/6000 | 6000 | 4900 | 300 | 400 | 250 | 630 | 40 | 8 | 50 |
| WC67Y-400T/4000 | 4000 | 3000 | 400 | 400 | 300 | 770 | 40 | 8 | 50 |
| model | oil capacity | back gauge stroke | back gauge speed | back ballscrew accuracy | motor power | length*width*height | height under floor | appro weight | |
| WC67Y-40T/2000 | 98L | 600mm | 20mm/s | 0.1mm | 5.5 | 2550*1450*2091 | 740 | 3.6 | |
| WC67Y-40T/2500 | 125L | 600mm | 20mm/s | 0.1mm | 5.5 | 3050*1450*2140 | 800 | 4.6 | |
| WC67Y-63T/2200 | 102L | 600mm | 20mm/s | 0.1mm | 5.5 | 3050*1500*2180 | 800 | 4.6 | |
| WC67Y-63T/2500 | 197L | 600mm | 20mm/s | 0.1mm | 7.5 | 3050*1500*2180 | 820 | 4.8 | |
| WC67Y-63T/3200 | 290L | 600mm | 20mm/s | 0.1mm | 7.5 | 3750*1500*2230 | 820 | 5.6 | |
| WC67Y-80T/2500 | 197L | 600mm | 20mm/s | 0.1mm | 7.5 | 3050*1500*2180 | 790 | 5.2 | |
| WC67Y-80T/3200 | 290L | 600mm | 20mm/s | 0.1mm | 7.5 | 3750*1500*2230 | 840 | 6 | |
| WC67Y-100T/2500 | 210L | 600mm | 20mm/s | 0.1mm | 7.5 | 3050*1550*2400 | 800 | 6.2 | |
| WC67Y-100T/3200 | 315L | 600mm | 20mm/s | 0.1mm | 7.5 | 3750*1550*2500 | 860 | 7.5 | |
| WC67Y-100T/4000 | 315L | 600mm | 20mm/s | 0.1mm | 7.5 | 4550*1550*2500 | 860 | 9 | |
| WC67Y-125T/3200 | 315L | 600mm | 20mm/s | 0.1mm | 7.5 | 3750*1550*2500 | 860 | 7.5 | |
| WC67Y-125T/3600 | 315L | 600mm | 20mm/s | 0.1mm | 7.5 | 4150*1550*2500 | 860 | 8.2 | |
| WC67Y-125T/4000 | 315L | 600mm | 20mm/s | 0.1mm | 7.5 | 4550*1550*2500 | 860 | 9 | |
| WC67Y-140T/3200 | 305L | 600mm | 20mm/s | 0.1mm | 11 | 3750*1600*2500 | 800 | 8.5 | |
| WC67Y-140T/4000 | 305L | 600mm | 20mm/s | 0.1mm | 11 | 4550*1600*2530 | 800 | 10.5 | |
| WC67Y-160T/3200 | 307L | 600mm | 20mm/s | 0.1mm | 11 | 3750*1640*2500 | 810 | 9 | |
| WC67Y-160T/4000 | 380L | 600mm | 20mm/s | 0.1mm | 11 | 4550*1640*2540 | 810 | 11 | |
| WC67Y-200T/3200 | 300L | 600mm | 20mm/s | 0.1mm | 15 | 3760*1640*2550 | 780 | 14 | |
| WC67Y-200T/4000 | 385L | 600mm | 20mm/s | 0.1mm | 15 | 4550*1640*2650 | 780 | 17 | |
| WC67Y-250T/3200 | 375L | 600mm | 20mm/s | 0.1mm | 18.5 | 3750*1900*2800 | 830 | 14 | |
| WC67Y-250T/4000 | 385L | 600mm | 20mm/s | 0.1mm | 18.5 | 4550*1900*2950 | 870 | 18 | |
| WC67Y-300T/3200 | 540L | 600mm | 20mm/s | 0.1mm | 22 | 3750*2200*2800 | 810 | 20 | |
| WC67Y-300T/4000 | 840L | 600mm | 20mm/s | 0.1mm | 22 | 4550*2200*3250 | 810 | 22.5 | |
| WC67Y-300T/5000 | 600mm | 20mm/s | 0.1mm | 22 | 5100*2560*4500 | 28 | |||
| WC67Y-300T/6000 | 600mm | 20mm/s | 0.1mm | 22 | 6550*2200*3600 | 34 | |||
| WC67Y-400T/4000 | 600mm | 20mm/s | 0.1mm | 30 | 4550*2400*3800 | 24 |
