Product Details:
|
| Max. Cutting Width (mm): | Other | Max. Cutting Thickness (mm): | 16 Mm |
|---|---|---|---|
| Automatic Level: | Manual | Shearing Angle: | 90 |
| Blade Length (mm): | 25 Mm | Backgauge Travel (mm): | 10 - 80 Mm |
| Throat Depth (mm): | 300 Mm | Condition: | New |
| Power (kW): | 4 KW | Weight (KG): | 1400 KG |
| Voltage: | 380-400v | Dimension(L*W*H): | 1650*750*1800mm |
| Year: | 2021 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Machinery Repair Shops, Other |
| Showroom Location: | United Kingdom | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| High Light: | ironworker punch machine,Q35Y-20,Q35Y-30 |
||

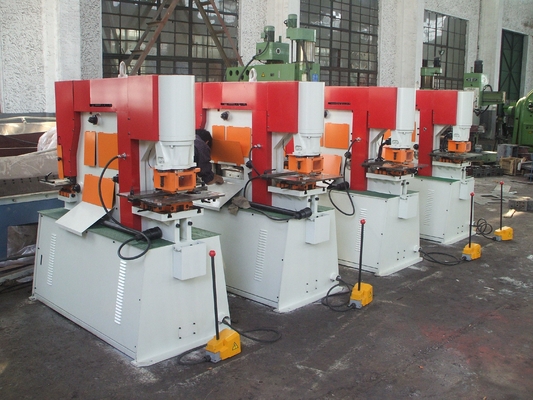

Factory Instock Series Steel Iron Worker,Hydraulic Steel Punch And Shearing Machine,Steel Punching And Cutting Mach
|
MODEL
|
Q35Y-16
|
Q35Y-20
|
Q35Y-25
|
Q35Y-30
|
|
PUNCHING
|
|
|
|
|
|
Punching Pressure
|
55Ton
|
75 Ton
|
110 Ton
|
140 Ton
|
|
Punching Capacity
|
¢22 x 20
|
¢26 x 22
|
¢31 x 27
|
¢36 x 32
|
|
( Diameter x Thickness)
|
¢50 x 9
|
¢50 x 12
|
¢50 x 17
|
¢50 x 23
|
|
Throat Depth
|
300
|
355
|
400
|
600
|
|
:
|
|
|
|
|
|
|
|
|
|
|
|
Channel Flange Punching (Height)
|
180
|
180
|
180
|
180
|
|
Max. Stroke Length
|
100
|
100
|
100
|
100
|
|
Cycles/Min. (20mm stroke)
|
30
|
30
|
28
|
40
|
|
Working Height Up to Die
|
950
|
1050
|
1050
|
1120
|
|
FLAT SHEARING
|
|
|
|
|
|
Flat Bar Shear
|
350 x 15
|
460 x 15
|
610 x 18
|
600 x 20
|
|
(Width x Thickness)
|
240 x 20
|
300 x 20
|
400 x 25
|
400 x 30
|
|
Blade Length
|
410
|
485
|
620
|
610
|
|
Angle Flange Trim
|
70
|
75
|
90
|
100
|
|
Working Height
|
910
|
926
|
920
|
920
|
|
ANGLE SHEARING
|
|
|
|
|
|
At 90º Shearing
|
130 x 130 x 13
|
152 x 152 x 13
|
152 x 152 x 18
|
205 x 205 x 18
|
|
At 45º Miter Shearing
|
60 x 60x 6
|
60 x60 x 6
|
70 x 70 x 7
|
70 x 70 x 7
|
|
Working Height
|
1115
|
1165
|
1185
|
1185
|
|
BAR SHEARING
|
|
|
|
|
|
Round Bar Shear
|
¢45
|
¢50
|
¢60
|
¢65
|
|
Square Bar Shear
|
40 x 40
|
50 x 50
|
50 x 50
|
55 x 55
|
|
Channel Shear
|
130*
|
152*
|
180*
|
203*
|
|
I Beam Shear
|
130*
|
152*
|
180*
|
203*
|
|
Working Height
|
1220
|
1270
|
1310
|
1370
|
|
NOTCHING
|
|
|
|
|
|
Rectangular Notcher (W x D x T)
|
50.8 x 90 x 9
|
50.8 x 90 x 12
|
63.5 x 90 x 13
|
63.5 x 90 x 16
|
|
Vee-Notcher (Side x Side x T)
|
90 x 90 x 10*
|
90 x 90 x 12*
|
105 x 105 x 13*
|
105 x 105 x 16*
|
|
Large V-Notcher (Side x Side x T)
|
145 x 145 x 8*
|
145 x 145 x 10*
|
145 x 145 x 13*
|
145 x 145 x 13*
|
|
Working Height
|
910
|
926
|
920
|
920
|
|
SPECIAL TOOLING
|
|
|
|
|
|
Single Vee Press Brake (W x T)
|
250 x 15*
|
250 x 15*
|
250 x 20*
|
250 x 20*
|
|
Multi- Vee Press Brake (W x T)
|
500 x 5*
|
500 x 5*
|
700 x 5*
|
700 x 5*
|
|
Angle Bending
|
102 x 6*
|
102 x 8*
|
102 x 13*
|
102 x 13*
|
|
Pipe Notching
|
¢114*
|
¢114*
|
¢114*
|
¢114*
|
|
OTHER
|
|
|
|
|
|
Motor
|
4 Kw
|
5.5 Kw
|
7.5 Kw
|
11 Kw
|
|
Net eight(Apr.)
|
1600 kg
|
1800kh
|
3800kg
|
4800kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
:
|
|
|
|
|
|
|
|
|
|
|
|
Gross Weight (Apr.)
|
1800kg
|
2000kg
|
4000kg
|
5000kg
|
|
|
|
|
|
|
|
Machine Dimensions (Apr.)
|
1710x800x1770
|
1860x800x1900
|
2360x960x2090
|
2720x1040x2300
|
|
(L x W x H)
|
|
|
|
|
factory instock series steel Iron worker,hydraulic steel punch and shearing machine,steel punching and cutting mach
Full range of universal punches and dies are available . Unique style allows for large angle iron punching and large channel punching .
Large viewing window on stripper swing awat design for ease of operation . Large two piece gauging table with rulers and stop as standard fittings . Quick changecoupling nut and sleeve for rapid replacement of change .
Different size channel and I-beam cutting . Large strong guarding of max safety .
Round and square bar shear has multiple holes for a variety of sizes . Adjustable hold down device for round and square bar .
The angle shear has the ability to cut angle at 45º both top and bottom leg . This gives the operator the ability to make a picture frame corner for perfect welds . Diamond shaped blade for quality cuts that is minimal material lost and deformity .
|
Name
|
Hydraulic Single Punching Machine
|
|
Max. Cutting Thickness (mm)
|
16 mm
|
|
Automatic Level
|
Manual
|
|
Shearing Angle
|
90
|
|
Blade Length (mm)
|
25 mm
|
|
Backgauge Travel (mm)
|
10 - 80 mm
|
|
Throat Depth (mm)
|
300 mm
|
|
Condition
|
New
|
|
Brand Name
|
DC40Y
|
|
Power (kW)
|
4 kW
|
|
Weight (KG)
|
1400 KG
|
|
Place of Origin
|
China
|
|
Voltage
|
380-400v
|
|
Dimension(L*W*H)
|
1650*750*1800mm
|
|
Certification
|
ce
|
|
Warranty
|
1 Year
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Core Components
|
Motor, Pump
|
Contact Person: Mr. Han
Tel: 15961725918
