Product Details:
|
| Max. Cutting Width (mm): | 3000 | Max. Cutting Thickness (mm): | 3.2 Mm |
|---|---|---|---|
| Automatic Level: | Semi-automatic | Shearing Angle: | 1.5 Degree |
| Blade Length (mm): | 3100 Mm | Backgauge Travel (mm): | 20 - 600 Mm |
| Throat Depth (mm): | 50 Mm | Condition: | New |
| Power (kW): | 11 KW | Weight (KG): | 3450 KG |
| Voltage: | 380-400V | Dimension(L*W*H): | 3750*2100*1400MM |
| Year: | 2021 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | United Kingdom, France, Germany, POLAND | Marketing Type: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other, BLADE |
| 3MM: | 3050MM | After-sales Service Provided: | Free Spare Parts, Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United Kingdom, France, Germany, ISRAEL |
| Port: | SHANGHAI | ||
| Highlight: | Semi automatic Shearing Machine 3100mm,hydraulic sheet shearing machine 3100mm,hydraulic sheet metal shear 3100mm |
||

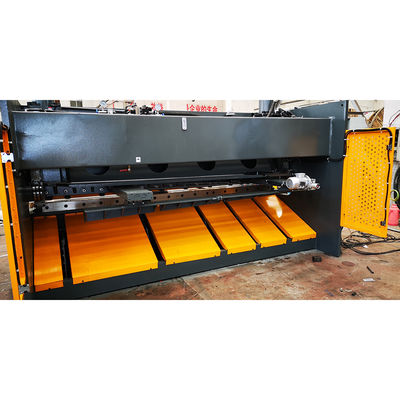

Manufacturer Custom Wholesale Mechanical Shear Semi-automatic Shearng Machine
MECHANICAL SHEAR
powered back gauge
backgauge stroke and stroke position controlled by E21 NC
front support arms &squaring arms
front finger guard
rear fence guard
limit switch on back gauge
electric door with lock
easy operation and maintainence
|
Max. Cutting Width (mm)
|
3000
|
|
Max. Cutting Thickness (mm)
|
3.2 mm
|
|
Automatic Level
|
Semi-automatic
|
|
Shearing Angle
|
1.5 degree
|
|
Blade Length (mm)
|
3100 mm
|
|
Backgauge Travel (mm)
|
20 - 600 mm
|
|
Throat Depth (mm)
|
50 mm
|
|
Condition
|
New
|
|
Brand Name
|
QH11D
|
|
Power (kW)
|
11 kW
|
|
Weight (KG)
|
3450 KG
|
|
Place of Origin
|
China
|
|
Voltage
|
380-400V
|
|
Dimension(L*W*H)
|
3750*2100*1400MM
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
Core Components
|
Motor, Other, BLADE
|
|
3MM
|
3050MM
|
