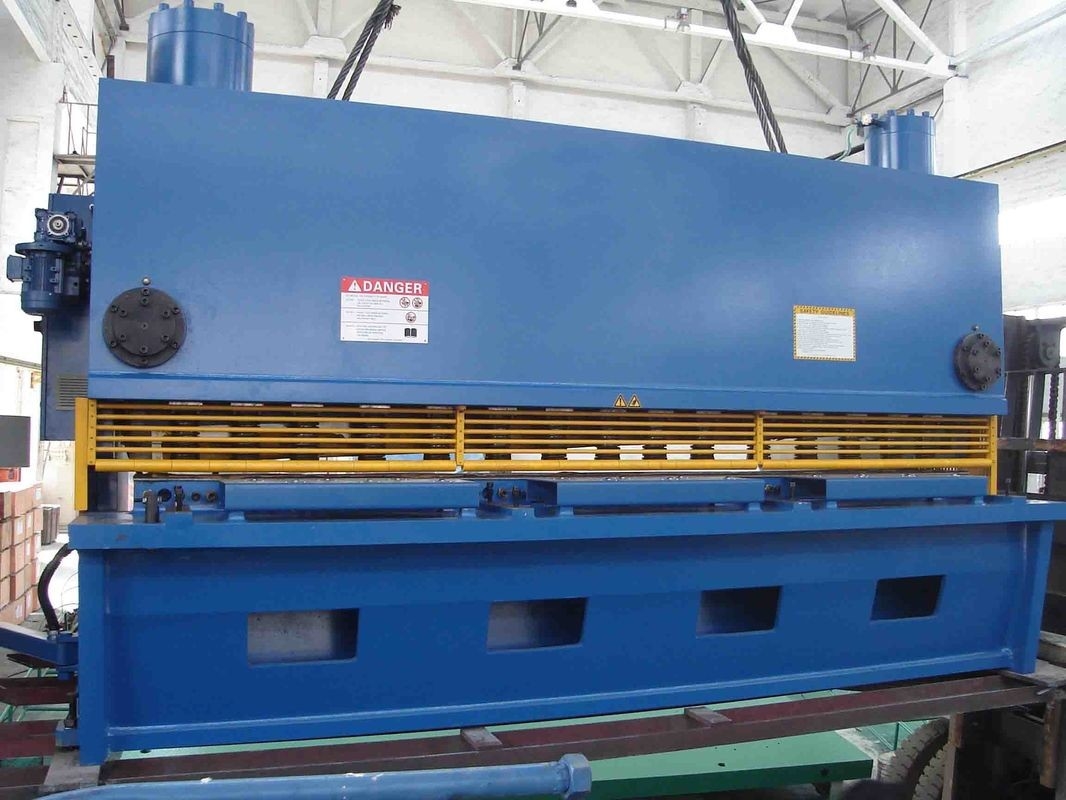

Cutting Sheet Metal Hand Guillotine Shearing Machine In Turkey 3200mm 4000mm

Cutting Sheet Metal Hand Guillotine Shearing Machine In Turkey 3200mm 4000mm
Cutting Sheet Metal Hand Guillotine Shearing Machine In Turkey 3200mm 4000mm

Large Image :  Cutting Sheet Metal Hand Guillotine Shearing Machine In Turkey 3200mm 4000mm

Product Details:
Place of Origin: CHINA
Brand Name: LAMI-NOVA
Certification: CE
Model Number: SC-6*3200
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD13000
Packaging Details: PALLET
Delivery Time: 40 DAYS
Supply Ability: 30SET/40 DAYS

Cutting Sheet Metal Hand Guillotine Shearing Machine In Turkey 3200mm 4000mm

Description
PLATE CUTTING MACHINE: CNC HYDRAULIC SHEAR Voltage: 380V,220V,380V,400V,Customizable
Dimension(l*w*h): 3880x2150x2000 Max. Cutting Width (mm): 3200, 4000,6000,2500
Key Selling Points: High Accuracy,High Productivity,Automatic Name: Shearing Machine
Control System: Estun E21 NC Control,Estun Or Cybelec Or Delam,E21S Cutting Material: Metal Stainless Steel Carbon Steel Aluminum,Metal .alloy Metal
Product Name: Cnc Hydraulic Shearing Machine Type: QC12K-8x3200,Swing Beam Shear
Port: Shanghai
High Light:

Guillotine Shearing Machine 3200mm

,

guillotine metal cutting machine

,

sheet steel guillotine





NC HYDRAULIC SHEAR MACHINE SC-6X3200 ,BALL SCREW,Convenient To Use,Perfect After-Sales Service



Totally EU streamlined design

Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
Adopt integrated hydraulic system, more reliable and easy for maintenance.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation

The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21S with Delta inverter.








Adopted fully welded frame,vibration eliminated stress,high rigidity ,hydraulic driving system,nitrogen cylinder return system,sturdy and durable,blade gap adjustment device and fine adjustment can be easily operated ,shadow line for good cutting,photocells at rear parts of machines as protection guard to the operator and other people ,backgauge stroke will be controlled and showed by E21 NC ,backgauge come with reducer box

Single or continuous stroke is at your option,electric door open,machine will stop working,oil tank and electric cabinet door come with rubber seals,throat come with cover

Front support plate come with balls ,thus ,facilitate feeding plate



model cutting length (mm) cutting thickness (45 Kgs/mm2) cutting thickness (70kkgs/mm2 rake angle(fixed) No. of strokes/min throat depth Nos of hold down jacks back gauge stroek

back gauge (X)dimension

(mini cutting strip)

motor power

(KW)

oil capacity length*height *width height under floor approx weight (T)
QC12Y-4*2000 2000 4 2 1°30′ 15 140 11 600 20 7.5 184L 2590*1520*1450 650 3.3
QC12Y-4*2500 2500 4 2 1°30′ 15 140 12 600 20 7.5 230L 3140*1520*1450 650 4.2
QC12Y-4*3200 3200 4 2 1°30′ 11 140 13 600 20 7.5 300L 3840*1520*1450 650 5.3
QC12Y-6*2000 2000 6 3 1°30′ 18 140 11 600 20 7.5 184L 2490*1610*1620 800 4.6
QC12Y-6*2500 2500 6 3 1°30′ 15 140 12 600 20 7.5 230L 3140*1610*1650 800 5
QC12Y-6*3200 3200 6 3 1°30′ 14 140 13 600 20 7.5 300L 3840*1610*1650 800 6.8
QC12Y-6*4000 4000 6 3 1°30′ 9 140 18 600 20 11 380L 4650*1660*1750 800 8
QC12Y-6*5000 5000 6 3 1°30′ 6 140 22 600 20 15 650L 5725*2160*1900 800 14
QC12Y-8*2500 2500 8 4 1°30′ 14 140 12 600 20 11 230L 3140*1610*1650 800 5.2
QC12Y-8*3200 3200 8 4 1°30′ 12 140 13 600 20 11 300L 3840*1610*1650 800 7.2
QC12Y-8*4000 4000 8 4 1°30′ 9 140 18 600 20 11 380L 4650*1660*1750 800 8.5
QC12Y-10*2500 2500 10 5 1°48′ 13 140 11 800 20 15 220L 3370*2100*1790 800 8.2
QC12Y-10*3200 3200 10 5 1°48′ 11 140 13 800 20 15 260L 4070*2100*1790 800 9.5
QC12Y-10*4000 4000 10 5 1°30′ 9 140 15 800 20 18.5 300L 4920*2250*2050 800 11
QC12Y-12*2500 2500 12 6 1°48′ 12 140 11 800 20 18.5 220L 3370*2100*1790 800 7.5
QC12Y-12*3200 3200 12 6 1°48′ 11 140 13 800 20 18.5 260L 4070*2100*1790 800 8.5
QC12Y-12*4000 4000 12 6 1°30′ 9 140 15 800 20 18.5 300L 4920*2250*2050 800 11.5
QC12Y-16*2500 2500 16 8 10 180 11 800 20 22 460L 3300*2270*2150 800 12.5
QC12Y-16*3200 3200 16 8 6 180 13 800 20 30 510L 4000*2270*2100 800 14
QC12Y-16*4000 4000 16 8 6 180 15 800 25 30 510L 4800*2270*2100 800 16
QC12Y-20*2500 2500 20 10 6 180 11 800 20 30 460L 3300*2270*2250 800 15.5
QC12Y-20*3200 3200 20 10 6 180 13 800 30 30 510L 4000*2270*2100 800 15.8
QC12Y-20*4000 4000 20 10 2°30′ 5 180 14 915 30 37 800L 4840*3190*2400 910 22
