Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter

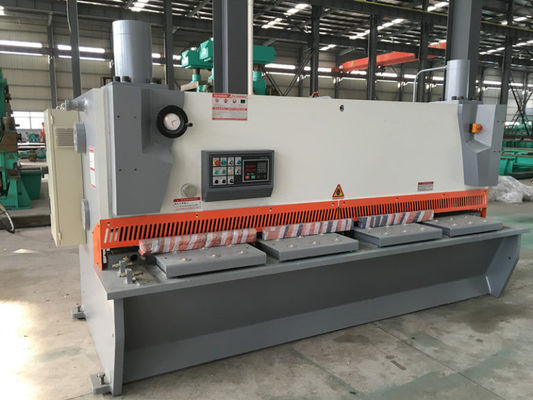

Large Image : Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter

Product Details:

Place of Origin:	China
Brand Name:	QH11D
Certification:	CE

Payment & Shipping Terms:

Price:	$11,500.00/Sets >=1 Sets
Packaging Details:	PLYWOOD BOX
Supply Ability:	100 Set/Sets per Year

Contact Now

Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter

Description

Max. Cutting Width (mm):	3000	Max. Cutting Thickness (mm):	3.2 Mm
Automatic Level:	Semi-automatic	Shearing Angle:	1.5 Degree
Blade Length (mm):	3100 Mm	Weight (KG):	3450 KG
Voltage:	380-400V	Key Selling Points:	Competitive Price
Machinery Test Report:	Provided	3MM:	3050MM
After-sales Service Provided:	Free Spare Parts, Online Support,	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	United Kingdom, France, Germany, ISRAEL
Highlight:	hand metal guillotine 3100mm , hand guillotine shear 3100mm , guillotine metal cutter 3100mm

CNC flat plate sheet metal hydraulic guillotine shearing machineSemi-automatic Shearng Machine

Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.

It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.

NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.

Hand Operated Sheet Metal Guillotine Metal Shear Machine Cutter 0

Specifications

Max. Cutting Width (mm)	3000
Max. Cutting Thickness (mm)	3.2 mm
Automatic Level	Semi-automatic
Shearing Angle	1.5 degree
Blade Length (mm)	3100 mm
Backgauge Travel (mm)	20 - 600 mm
Throat Depth (mm)	50 mm
Condition	New
Brand Name	QH11D
Power (kW)	11 kW
Weight (KG)	3450 KG
Place of Origin	China
Voltage	380-400V
Dimension(LWH)	375021001400MM
Certification	CE
Warranty	1 Year
Core Components	Motor, Other, BLADE
3MM	3050MM
