Product Details:
|
| PLATE CUTTING MACHINE: | CNC HYDRAULIC SHEAR | Voltage: | 380V,220V,380V,400V,Customizable |
|---|---|---|---|
| Dimension(l*w*h): | 3880x2150x2000 | Max. Cutting Width (mm): | 3200, 4000,6000,2500 |
| Key Selling Points: | High Accuracy,High Productivity,Automatic | Control System: | Estun Or Cybelec Or Delam,E21S,Estun,E21/DAC360 |
| Cutting Material: | Metal Stainless Steel Carbon Steel Aluminum,Metal .alloy Metal .aluminum | Product Name: | Cnc Hydraulic Shearing Machine |
| Color: | Customizable | Core Components: | Bearing, Motor, Other |
| High Light: | metal guillotine machine,mechanical guillotine shear,Mechanical Shearing Machine Qc12k-4x2500 |
||

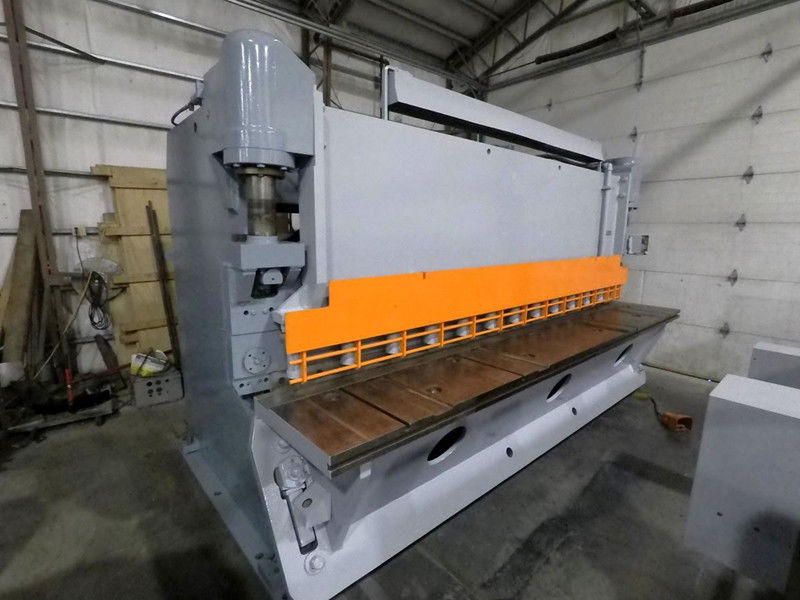

NC HYDRAULIC SHEAR MACHINE SC-6X3200 ,BALL SCREW,Convenient To Use,FRONT FINGER GUARDandPHOTOCELLS
Adopt integrated hydraulic control system, more reliable and easy for maintenance. Hydraulic system is from Bosch -Rexroth, Germany. -All pipes, flange and joint with vibrations proof and leakage proof design and setting. -All seals in cylinder is NOK from Japan, the most famous brand, good quality and high performance. -Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly. -The hydraulic system is made in compliance with current regulations.
Electrical Cabinet under the standard of IP55, Electrical under international CE Standard, safe and reliable, strong anti interference capability. -Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate. -Front Side Covers with safety switches, Back light safety guards,Foot pedal conforming to CE regulation.
Adopted fully welded frame,vibration eliminated stress,high rigidity ,hydraulic driving system,nitrogen cylinder return system,sturdy and durable,blade gap adjustment device and fine adjustment can be easily operated ,shadow line for good cutting,photocells at rear parts of machines as protection guard to the operator and other people ,backgauge stroke will be controlled and showed by E21 NC ,backgauge come with reducer box
Single or continuous stroke is at your option,electric door open,machine will stop working,oil tank and electric cabinet door come with rubber seals,throat come with cover
Front support plate come with balls ,thus ,facilitate feeding plate
| model | cutting length (mm) | cutting thickness (45 Kgs/mm2) | cutting thickness (70kkgs/mm2 | rake angle(fixed) | No. of strokes/min | throat depth | Nos of hold down jacks | back gauge stroek |
back gauge (X)dimension (mini cutting strip) |
motor power (KW) |
oil capacity | length*height *width | height under floor | approx weight (T) |
| QC12Y-4*2000 | 2000 | 4 | 2 | 1°30′ | 15 | 140 | 11 | 600 | 20 | 7.5 | 184L | 2590*1520*1450 | 650 | 3.3 |
| QC12Y-4*2500 | 2500 | 4 | 2 | 1°30′ | 15 | 140 | 12 | 600 | 20 | 7.5 | 230L | 3140*1520*1450 | 650 | 4.2 |
| QC12Y-4*3200 | 3200 | 4 | 2 | 1°30′ | 11 | 140 | 13 | 600 | 20 | 7.5 | 300L | 3840*1520*1450 | 650 | 5.3 |
| QC12Y-6*2000 | 2000 | 6 | 3 | 1°30′ | 18 | 140 | 11 | 600 | 20 | 7.5 | 184L | 2490*1610*1620 | 800 | 4.6 |
| QC12Y-6*2500 | 2500 | 6 | 3 | 1°30′ | 15 | 140 | 12 | 600 | 20 | 7.5 | 230L | 3140*1610*1650 | 800 | 5 |
| QC12Y-6*3200 | 3200 | 6 | 3 | 1°30′ | 14 | 140 | 13 | 600 | 20 | 7.5 | 300L | 3840*1610*1650 | 800 | 6.8 |
| QC12Y-6*4000 | 4000 | 6 | 3 | 1°30′ | 9 | 140 | 18 | 600 | 20 | 11 | 380L | 4650*1660*1750 | 800 | 8 |
| QC12Y-6*5000 | 5000 | 6 | 3 | 1°30′ | 6 | 140 | 22 | 600 | 20 | 15 | 650L | 5725*2160*1900 | 800 | 14 |
| QC12Y-8*2500 | 2500 | 8 | 4 | 1°30′ | 14 | 140 | 12 | 600 | 20 | 11 | 230L | 3140*1610*1650 | 800 | 5.2 |
| QC12Y-8*3200 | 3200 | 8 | 4 | 1°30′ | 12 | 140 | 13 | 600 | 20 | 11 | 300L | 3840*1610*1650 | 800 | 7.2 |
| QC12Y-8*4000 | 4000 | 8 | 4 | 1°30′ | 9 | 140 | 18 | 600 | 20 | 11 | 380L | 4650*1660*1750 | 800 | 8.5 |
| QC12Y-10*2500 | 2500 | 10 | 5 | 1°48′ | 13 | 140 | 11 | 800 | 20 | 15 | 220L | 3370*2100*1790 | 800 | 8.2 |
| QC12Y-10*3200 | 3200 | 10 | 5 | 1°48′ | 11 | 140 | 13 | 800 | 20 | 15 | 260L | 4070*2100*1790 | 800 | 9.5 |
| QC12Y-10*4000 | 4000 | 10 | 5 | 1°30′ | 9 | 140 | 15 | 800 | 20 | 18.5 | 300L | 4920*2250*2050 | 800 | 11 |
| QC12Y-12*2500 | 2500 | 12 | 6 | 1°48′ | 12 | 140 | 11 | 800 | 20 | 18.5 | 220L | 3370*2100*1790 | 800 | 7.5 |
| QC12Y-12*3200 | 3200 | 12 | 6 | 1°48′ | 11 | 140 | 13 | 800 | 20 | 18.5 | 260L | 4070*2100*1790 | 800 | 8.5 |
| QC12Y-12*4000 | 4000 | 12 | 6 | 1°30′ | 9 | 140 | 15 | 800 | 20 | 18.5 | 300L | 4920*2250*2050 | 800 | 11.5 |
| QC12Y-16*2500 | 2500 | 16 | 8 | 2° | 10 | 180 | 11 | 800 | 20 | 22 | 460L | 3300*2270*2150 | 800 | 12.5 |
| QC12Y-16*3200 | 3200 | 16 | 8 | 2° | 6 | 180 | 13 | 800 | 20 | 30 | 510L | 4000*2270*2100 | 800 | 14 |
| QC12Y-16*4000 | 4000 | 16 | 8 | 2° | 6 | 180 | 15 | 800 | 25 | 30 | 510L | 4800*2270*2100 | 800 | 16 |
| QC12Y-20*2500 | 2500 | 20 | 10 | 2° | 6 | 180 | 11 | 800 | 20 | 30 | 460L | 3300*2270*2250 | 800 | 15.5 |
| QC12Y-20*3200 | 3200 | 20 | 10 | 2° | 6 | 180 | 13 | 800 | 30 | 30 | 510L | 4000*2270*2100 | 800 | 15.8 |
| QC12Y-20*4000 | 4000 | 20 | 10 | 2°30′ | 5 | 180 | 14 | 915 | 30 | 37 | 800L | 4840*3190*2400 | 910 | 22 |
