Product Details:
|
| PLATE CUTTING MACHINE: | CNC HYDRAULIC SHEAR | Voltage: | 380V,220V,380V,400V |
|---|---|---|---|
| Dimension(l*w*h): | 3850*1990*2050mm | Max. Cutting Width (mm): | 3200, 4000,6000,2500 |
| Key Selling Points: | High Accuracy,High Productivity | Name: | Shearing Machine |
| Control System: | Estun E21 NC Control | Product Name: | Cnc Hydraulic Shearing Machine |
| Type: | Metal Sheet Cutting Machine | ||
| High Light: | qc12y series hydraulic swing beam shear,shear qc12y 6x2500,hydraulic swing beam shear qc12y |
||

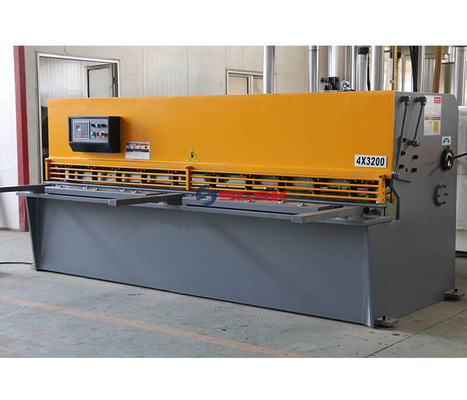

Hydraulic Shears For Excavators Swing Beam Shearing MachineHIGH CONFIGURATION
The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation. Indicator-based adjustment of gap of blade is convenient and fast.
The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
The machine uses protection fence for safe operation.
Digital display device for size of back gauge and shearing times available.
Adopted fully welded frame,vibration eliminated stress,high rigidity ,hydraulic driving system,nitrogen cylinder return system,sturdy and durable,blade gap adjustment device and fine adjustment can be easily operated ,shadow line for good cutting,photocells at rear parts of machines as protection guard to the operator and other people ,backgauge stroke will be controlled and showed by E21 NC ,backgauge come with reducer box
Single or continuous stroke is at your option,electric door open,machine will stop working,oil tank and electric cabinet door come with rubber seals,throat come with cover
Front support plate come with balls ,thus ,facilitate feeding plate
| model | cutting length (mm) | cutting thickness (45 Kgs/mm2) | cutting thickness (70kkgs/mm2 | rake angle(fixed) | No. of strokes/min | throat depth | Nos of hold down jacks | back gauge stroek |
back gauge (X)dimension (mini cutting strip) |
motor power (KW) |
oil capacity | length*height *width | height under floor | approx weight (T) |
| QC12Y-4*2000 | 2000 | 4 | 2 | 1°30′ | 15 | 140 | 11 | 600 | 20 | 7.5 | 184L | 2590*1520*1450 | 650 | 3.3 |
| QC12Y-4*2500 | 2500 | 4 | 2 | 1°30′ | 15 | 140 | 12 | 600 | 20 | 7.5 | 230L | 3140*1520*1450 | 650 | 4.2 |
| QC12Y-4*3200 | 3200 | 4 | 2 | 1°30′ | 11 | 140 | 13 | 600 | 20 | 7.5 | 300L | 3840*1520*1450 | 650 | 5.3 |
| QC12Y-6*2000 | 2000 | 6 | 3 | 1°30′ | 18 | 140 | 11 | 600 | 20 | 7.5 | 184L | 2490*1610*1620 | 800 | 4.6 |
| QC12Y-6*2500 | 2500 | 6 | 3 | 1°30′ | 15 | 140 | 12 | 600 | 20 | 7.5 | 230L | 3140*1610*1650 | 800 | 5 |
| QC12Y-6*3200 | 3200 | 6 | 3 | 1°30′ | 14 | 140 | 13 | 600 | 20 | 7.5 | 300L | 3840*1610*1650 | 800 | 6.8 |
| QC12Y-6*4000 | 4000 | 6 | 3 | 1°30′ | 9 | 140 | 18 | 600 | 20 | 11 | 380L | 4650*1660*1750 | 800 | 8 |
| QC12Y-6*5000 | 5000 | 6 | 3 | 1°30′ | 6 | 140 | 22 | 600 | 20 | 15 | 650L | 5725*2160*1900 | 800 | 14 |
| QC12Y-8*2500 | 2500 | 8 | 4 | 1°30′ | 14 | 140 | 12 | 600 | 20 | 11 | 230L | 3140*1610*1650 | 800 | 5.2 |
| QC12Y-8*3200 | 3200 | 8 | 4 | 1°30′ | 12 | 140 | 13 | 600 | 20 | 11 | 300L | 3840*1610*1650 | 800 | 7.2 |
| QC12Y-8*4000 | 4000 | 8 | 4 | 1°30′ | 9 | 140 | 18 | 600 | 20 | 11 | 380L | 4650*1660*1750 | 800 | 8.5 |
| QC12Y-10*2500 | 2500 | 10 | 5 | 1°48′ | 13 | 140 | 11 | 800 | 20 | 15 | 220L | 3370*2100*1790 | 800 | 8.2 |
| QC12Y-10*3200 | 3200 | 10 | 5 | 1°48′ | 11 | 140 | 13 | 800 | 20 | 15 | 260L | 4070*2100*1790 | 800 | 9.5 |
| QC12Y-10*4000 | 4000 | 10 | 5 | 1°30′ | 9 | 140 | 15 | 800 | 20 | 18.5 | 300L | 4920*2250*2050 | 800 | 11 |
| QC12Y-12*2500 | 2500 | 12 | 6 | 1°48′ | 12 | 140 | 11 | 800 | 20 | 18.5 | 220L | 3370*2100*1790 | 800 | 7.5 |
| QC12Y-12*3200 | 3200 | 12 | 6 | 1°48′ | 11 | 140 | 13 | 800 | 20 | 18.5 | 260L | 4070*2100*1790 | 800 | 8.5 |
| QC12Y-12*4000 | 4000 | 12 | 6 | 1°30′ | 9 | 140 | 15 | 800 | 20 | 18.5 | 300L | 4920*2250*2050 | 800 | 11.5 |
| QC12Y-16*2500 | 2500 | 16 | 8 | 2° | 10 | 180 | 11 | 800 | 20 | 22 | 460L | 3300*2270*2150 | 800 | 12.5 |
| QC12Y-16*3200 | 3200 | 16 | 8 | 2° | 6 | 180 | 13 | 800 | 20 | 30 | 510L | 4000*2270*2100 | 800 | 14 |
| QC12Y-16*4000 | 4000 | 16 | 8 | 2° | 6 | 180 | 15 | 800 | 25 | 30 | 510L | 4800*2270*2100 | 800 | 16 |
| QC12Y-20*2500 | 2500 | 20 | 10 | 2° | 6 | 180 | 11 | 800 | 20 | 30 | 460L | 3300*2270*2250 | 800 | 15.5 |
| QC12Y-20*3200 | 3200 | 20 | 10 | 2° | 6 | 180 | 13 | 800 | 30 | 30 | 510L | 4000*2270*2100 | 800 | 15.8 |
| QC12Y-20*4000 | 4000 | 20 | 10 | 2°30′ | 5 | 180 | 14 | 915 | 30 | 37 | 800L | 4840*3190*2400 | 910 | 22 |
