4mm 16mm Mechanical NC Shearing Machine Universal QC12Y-16x4000 QC12Y-16x3200

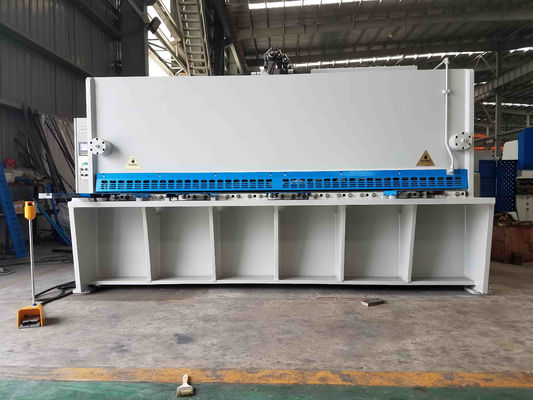

Large Image : 4mm 16mm Mechanical NC Shearing Machine Universal QC12Y-16x4000 QC12Y-16x3200

Product Details:

Place of Origin:	CHINA
Brand Name:	LAMI-NOVA
Certification:	CE
Model Number:	SC-8*3200

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	USD13000
Packaging Details:	PALLET
Delivery Time:	40 DAYS
Supply Ability:	30SET/40 DAYS

Contact Now

4mm 16mm Mechanical NC Shearing Machine Universal QC12Y-16x4000 QC12Y-16x3200

Description

PLATE CUTTING MACHINE:	CNC HYDRAULIC SHEAR	Voltage:	220V/380V
Dimension(lwh):	390021502250,385019902050mm	Name:	Shearing Machine
Control System:	Estun E21 NC Control	Cutting Material:	Alloy Metal
Product Name:	Cnc Hydraulic Shearing Machine	Type:	Metal Sheet Cutting Machine
Core Components:	Bearing, Motor
Highlight:	LAMI-NOVA 4mm Mechanical NC Shearing Machine , 3.3t 4mm Mechanical NC Shearing Machine , 3.3t QC12Y-16x3200

CNC HYDRAULIC SHEAR MACHINE SC-8X3200 ,GLIDING SHEETHydraulic Shearing Machine Original Factory Best Price

The frame structure of the shearing machine adopts all-steel welding; the four-corner and eight-sided right-angle guide rails have high precision, good rigidity and hydraulic preloading. The hydraulic system adopts two-way plug-in integrated valve, and can be equipped with stroke digital display, photoelectric protection device and mobile workbench. The shearing machine has double-action function of upper slider and lower hydraulic pad, and the working pressure stroke can be pressed within the specified

range. The process requires adjustment, and the operation is simple and centralized using buttons.

Adopted fully welded frame,vibration eliminated stress,high rigidity ,hydraulic driving system,nitrogen cylinder return system,sturdy and durable,blade gap adjustment device and fine adjustment can be easily operated ,shadow line for good cutting,photocells at rear parts of machines as protection guard to the operator and other people ,backgauge stroke will be controlled and showed by E21 NC ,backgauge come with reducer box

Single or continuous stroke is at your option,electric door open,machine will stop working,oil tank and electric cabinet door come with rubber seals,throat come with cover

Front support plate come with balls ,thus ,facilitate feeding plate

model	cutting length (mm)	cutting thickness (45 Kgs/mm2)	cutting thickness (70kkgs/mm2	rake angle(fixed)	No. of strokes/min	throat depth	Nos of hold down jacks	back gauge stroek	back gauge (X)dimension (mini cutting strip)	motor power (KW)	oil capacity	lengthheight width	height under floor	approx weight (T)
QC12Y-4*2000	2000	4	2	1°30′	15	140	11	600	20	7.5	184L	259015201450	650	3.3
QC12Y-4*2500	2500	4	2	1°30′	15	140	12	600	20	7.5	230L	314015201450	650	4.2
QC12Y-4*3200	3200	4	2	1°30′	11	140	13	600	20	7.5	300L	384015201450	650	5.3
QC12Y-6*2000	2000	6	3	1°30′	18	140	11	600	20	7.5	184L	249016101620	800	4.6
QC12Y-6*2500	2500	6	3	1°30′	15	140	12	600	20	7.5	230L	314016101650	800	5
QC12Y-6*3200	3200	6	3	1°30′	14	140	13	600	20	7.5	300L	384016101650	800	6.8
QC12Y-6*4000	4000	6	3	1°30′	9	140	18	600	20	11	380L	465016601750	800	8
QC12Y-6*5000	5000	6	3	1°30′	6	140	22	600	20	15	650L	572521601900	800	14
QC12Y-8*2500	2500	8	4	1°30′	14	140	12	600	20	11	230L	314016101650	800	5.2
QC12Y-8*3200	3200	8	4	1°30′	12	140	13	600	20	11	300L	384016101650	800	7.2
QC12Y-8*4000	4000	8	4	1°30′	9	140	18	600	20	11	380L	465016601750	800	8.5
QC12Y-10*2500	2500	10	5	1°48′	13	140	11	800	20	15	220L	337021001790	800	8.2
QC12Y-10*3200	3200	10	5	1°48′	11	140	13	800	20	15	260L	407021001790	800	9.5
QC12Y-10*4000	4000	10	5	1°30′	9	140	15	800	20	18.5	300L	492022502050	800	11
QC12Y-12*2500	2500	12	6	1°48′	12	140	11	800	20	18.5	220L	337021001790	800	7.5
QC12Y-12*3200	3200	12	6	1°48′	11	140	13	800	20	18.5	260L	407021001790	800	8.5
QC12Y-12*4000	4000	12	6	1°30′	9	140	15	800	20	18.5	300L	492022502050	800	11.5
QC12Y-16*2500	2500	16	8	2°	10	180	11	800	20	22	460L	330022702150	800	12.5
QC12Y-16*3200	3200	16	8	2°	6	180	13	800	20	30	510L	400022702100	800	14
QC12Y-16*4000	4000	16	8	2°	6	180	15	800	25	30	510L	480022702100	800	16
QC12Y-20*2500	2500	20	10	2°	6	180	11	800	20	30	460L	330022702250	800	15.5
QC12Y-20*3200	3200	20	10	2°	6	180	13	800	30	30	510L	400022702100	800	15.8
QC12Y-20*4000	4000	20	10	2°30′	5	180	14	915	30	37	800L	484031902400	910	22

4mm 16mm Mechanical NC Shearing Machine Universal QC12Y-16x4000 QC12Y-16x3200 0
