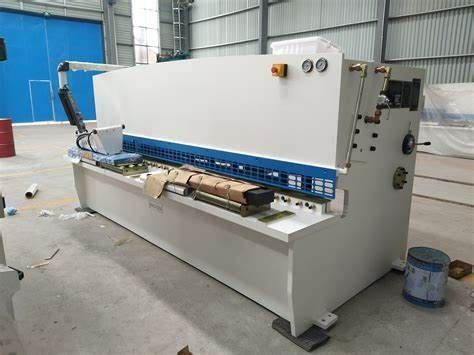

Hydraulic NC Shearing Machine Sheet Metal Qc12y-12x3200 Manual

CNC HYDRAULIC SHEAR MACHINE SC-8X3200 ,cutting Shearing Machine for metal guillotina hydraulic shearing machine

Hydraulic Swing Beam Shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality. More than just cutting; NC is developed by expert engineers reflects innovative technology with all aspects of it.

1. Wear resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge.
2. Portable foot pedal is eligible for single and automatic cutting.
3. ESTUN E21s NC controller System.
4. NC controlled motorized backgauge system.
5. 600 mm motorized back gauge system with 0.1 mm accuracy.
6. Front support arms with T slot, ruler and flip stop.
7. Squaring arm.
8. Scales with metric and inches.
9. Cutting line illumination and shadow line.
10. Central lubrication system.
11. Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
12. Rear sliding plates.
13. Front sliding plates with ball bearings on the table

Adopted fully welded frame,vibration eliminated stress,high rigidity ,hydraulic driving system,nitrogen cylinder return system,sturdy and durable,blade gap adjustment device and fine adjustment can be easily operated ,shadow line for good cutting,photocells at rear parts of machines as protection guard to the operator and other people ,backgauge stroke will be controlled and showed by E21 NC ,backgauge come with reducer box

Single or continuous stroke is at your option,electric door open,machine will stop working,oil tank and electric cabinet door come with rubber seals,throat come with cover

Front support plate come with balls ,thus ,facilitate feeding plate
